Overview

1/2 Inch Birch Plywood is a multi-ply hardwood panel constructed from cross-banded birch veneers, designed specifically for structural stability and clean machining.

Technical Specification

Specification	Details
Thickness	True 12.0 mm (0.472"), tolerance: ±0.2 mm

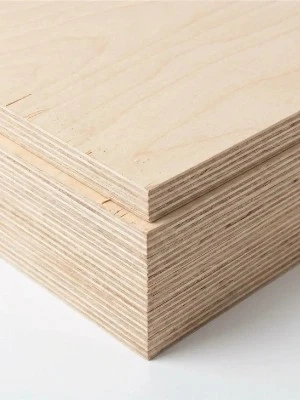

Panel Construction	9-ply, 100% solid birch veneer core
Face & Back Grade	B/BB, BB/BB, BB/CP (GOST 3916.1-96)
Moisture Content	6–10% (kiln-dried before packaging)
Density	680 ± 20 kg/m³
Adhesive Options	MR (Type II UF) or WBP (Type I Phenolic)
Core Material	100% Birch, no poplar or eucalyptus mixed

Applications

Cabinet Carcasses & Framework: Load-bearing sidewalls and base panels supporting static loads up to 120 kg under standard hardware spacing.

Drawer Box Sides: Edge screw-holding strength of 1350 N; optimized for pneumatic stapling and high-speed doweled assembly lines.

Exposed Furniture Backing: Calibrated ±0.2mm flat surfaces for direct lamination of HPL, thin wood veneers, or UV topcoats.

CNC Routed Components: 100% solid birch multi-ply core with zero inner voids.

Custom Manufacturing Options

Dimensional Sizing: Standard 4'x8' (1220x2440mm) and 5'x5' (1525x1525mm); custom press sizes up to 1525x3050mm (5'x10') available for volume contracts.

Surface Finishing: Raw panels factory-sanded to 180/240 grit; optional double-sided clear UV acrylic topcoat (2H scratch resistance) available for immediate assembly.

Core Configurations: 100% solid birch cores for premium structural integrity, or birch/pine combi-cores.

Edge Profiling: Shiplap, tongue-and-groove, or bullnose profiling executed directly from client CAD/DXF drawings.

Quality Control

Internal Soundness: 100% ultrasonic void detection to prevent internal delamination and core overlaps during heavy-duty industrial processing.

Dimensional Tolerances: 8-point laser micrometer calibration keeps cross-panel thickness variation within ±0.2 mm, ensuring flawless edge-banding machine feeding.

Bonding & Moisture Integrity: Daily lab sampling, including a 24-hour water-soak test (shear strength >1.0 MPa) and digital moisture control capped at 10.5% maximum.

Third-Party Inspection: Full on-site testing, compliance, and open-gate access for SGS, Bureau Veritas, and Intertek auditors before container sealing.

Packaging & Logistics

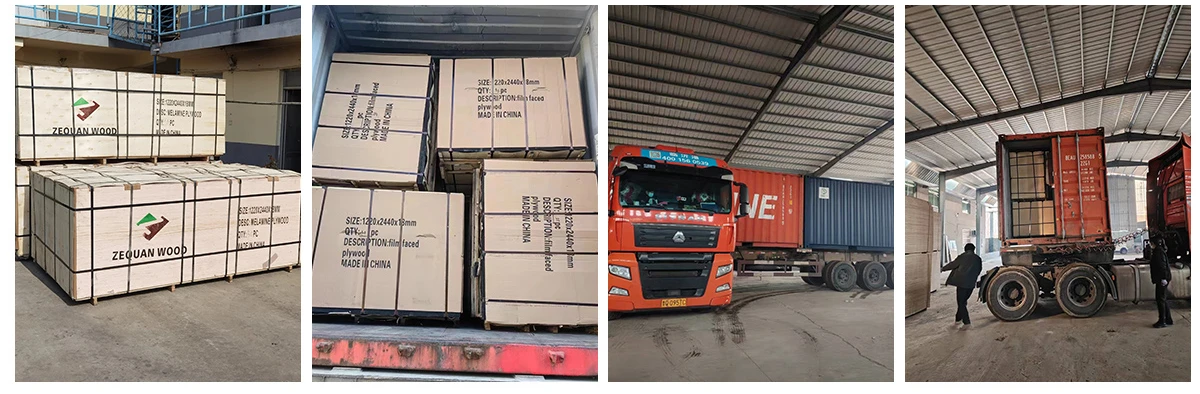

Export Packing: Heavy-duty wooden skids with 4mm MDF protective covers, high-tensile steel bands, and 0.15mm heat-sealed PE shrink-wrap for sea freight moisture protection.

Capacity & Lead Time: 60,000 m³ annual output across 3 continuous pressing lines; first orders ship within 25 days, repeat rolling orders within 14 days.

Loading: Standard loading is 16 pallets (approx. 42 m³ / 28 metric tons) per 40ft HQ container.

Incoterms Offered: FOB and CIF (Target Destination Port) options available.

Commercial Terms

North American Market: EPA TSCA Title VI and CARB Phase 2 certified with quarterly third-party laboratory audits for strict formaldehyde compliance.

European Market: CE Marked under EN 13986 for structural use; adhesives comply with REACH SVHC thresholds (<0.1%).

Management: 100% FSC-certified chain of custody available upon contract; facility operates under certified ISO 9001:2015 standards.

Certifications & Compliance

North American Market: EPA TSCA Title VI and CARB Phase 2 certified with quarterly third-party laboratory audits for strict formaldehyde compliance.

European Market: CE Marked under EN 13986 for structural use; adhesives comply with REACH SVHC thresholds (<0.1%).

Management: 100% FSC-certified chain of custody available upon contract; facility operates under certified ISO 9001:2015 standards.

FAQ

Q: How much weight can 1/2 inch birch plywood safely support in furniture applications?

A: When properly installed on standard cabinet framing, the panel supports static loads up to 120 kg.

Q: How long can birch plywood maintain its structural performance?

A: Under normal indoor conditions with relative humidity between 40–70%, the panel typically maintains its structural stability and bonding performance for 15–20 years without warping or delamination.

Q: How should the plywood be stored before manufacturing?

A: Panels should be stored flat on a level surface in a dry warehouse at 15–30°C with humidity below 70%. They should acclimate for 48 hours before cutting or assembly.

Q: Will the color and wood grain remain consistent across different production batches?

A: Yes. Face veneers are sorted by color tone and grain pattern before pressing, and every production batch follows a controlled grading process to minimize visible variation.

Q: Can I trace the manufacturing history of every plywood shipment?

A: Yes. Every pallet is labeled with a production batch number that links to manufacturing records, adhesive type, pressing date, quality inspection reports, and raw material sources.

Q: How well does the plywood hold screws compared with mixed hardwood cores?

A: The 100% birch veneer core provides screw withdrawal strength of up to 1,350 N, allowing repeated assembly and disassembly with significantly lower risk of edge splitting than mixed-species plywood.
